  • RACK & PINION PNEUMATIC ROTARY ACTUATOR

    Actuator : Double & Single Acting
    Body : Aluminium
    Torque : Upto 4000 Nm
    Pressure : 4 to 7 BAR
    Mountin : Namur
    Rotation : 90° & 180

  • STAINLESS STEEL ACTUATOR

    Size : MX-45 To MX-210
    MOC : IC CF8/CF8M
    Pressure :4 To 8 BAR
    Temperature: Upto 150°C
    Torque : 0 To 2000 NM
    Mounting : 0 To 2000 NM

  • SCOTCH & YOKE PNEUMATIC ROTARY ACTUATOR

    Actuator : Double & Single Acting
    Body : SG IRON
    Scotch Yoke :SG IRON
    Torque : Upto 10,000 Nm
    Pressure : 4 to 7 BAR

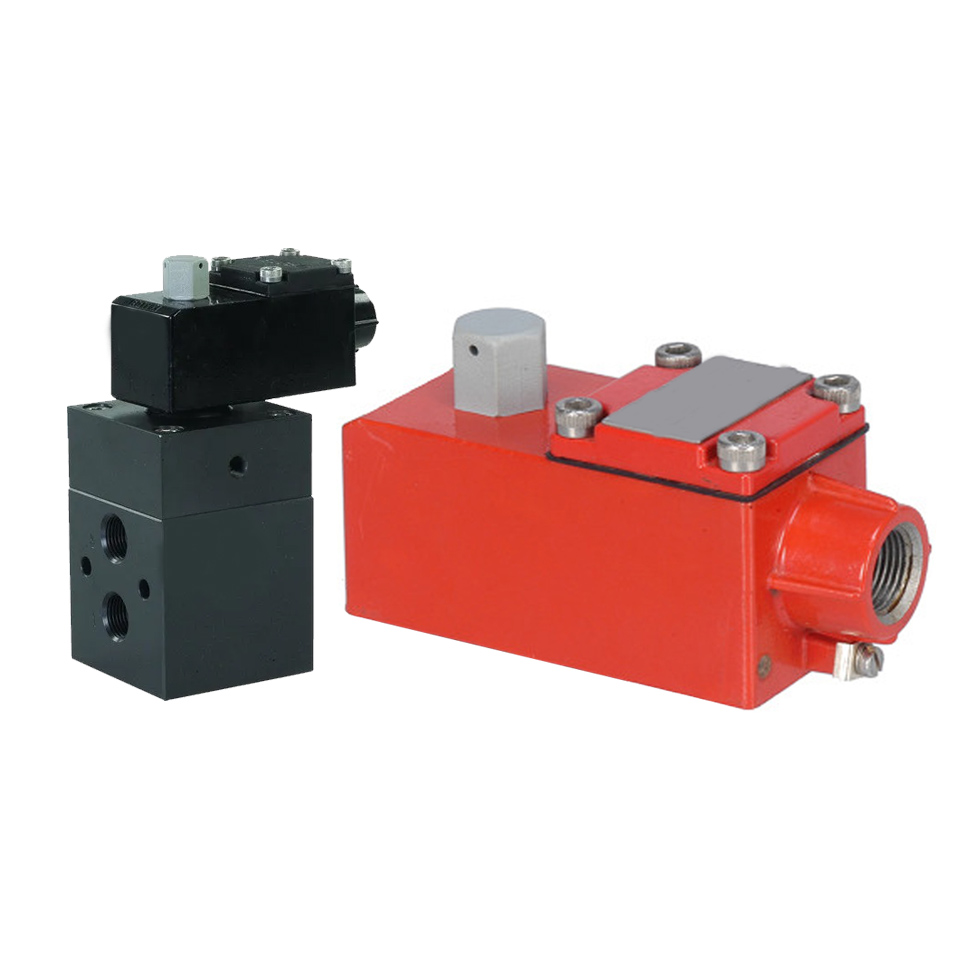

  • 3/2 WAY & 5/2 WAY SOLENOID VALVE

    MOC : Aluminum
    Seals : Hi-Nitrile /Viton
    Pressure : 2.5 to 10 Kg/cm²
    Temperature : -20°C to 70°C
    Voltage : 12V, 24V, 48V, 110V, 230V AC/DC

  • WEATHERPROOF & FLAMEPROOF COIL

    Size : Standard
    Coil Type : Flame Proof & Weather Proof
    Voltage :12V, 24V, 48V, 110V, 230V, AC/DC

  • MANUAL OVERRIDE

    Body : CI/ DI/ Stainless Steel
    Shaft : EN 8
    Torque : 180 Nm to 30000 Nm
    Travel : 90" (Quarter Turn)
    Hand Wheel: M. S. Fabricated

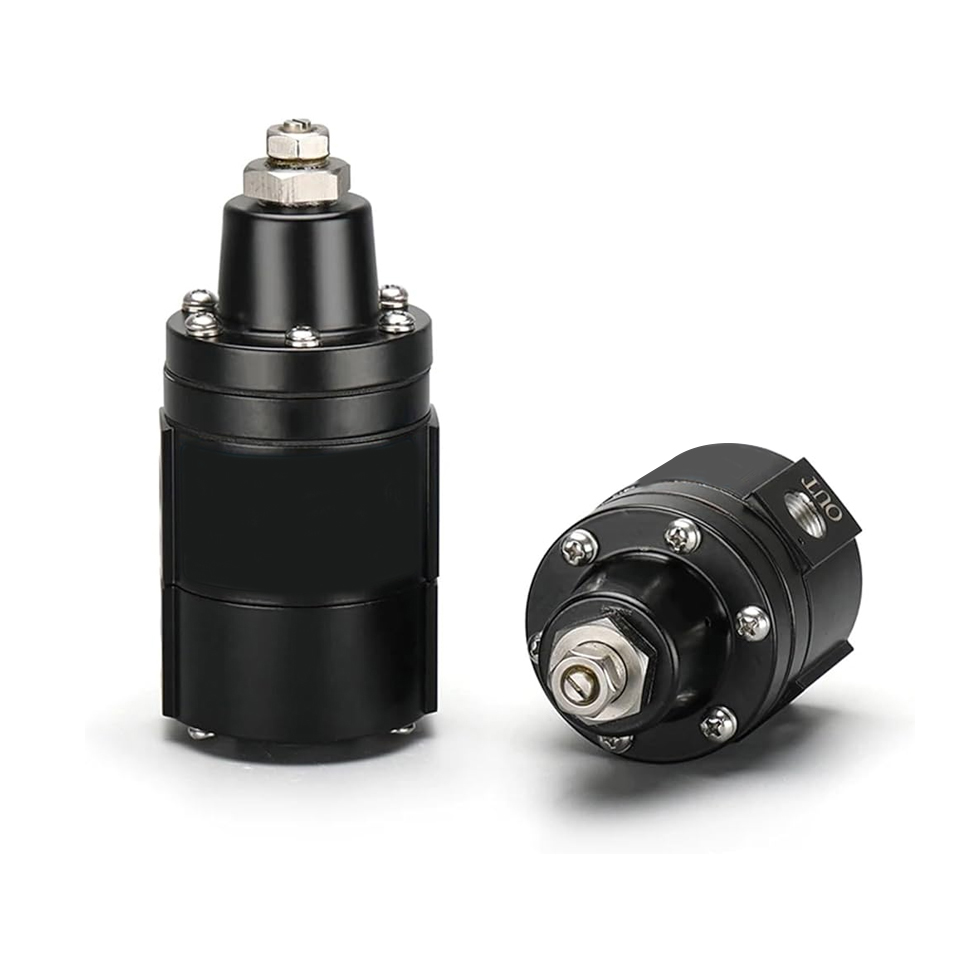

  • AIR VOLUME BOOSTER

    Size : As Per Standard
    MOC : Aluminium Die Cast/ S.S 304/S.S 316
    Pressure : Max 10 Bar
    Temperature : -20°C To 70°C
    Signal Connection :1/4", 1/2" & 3/8"

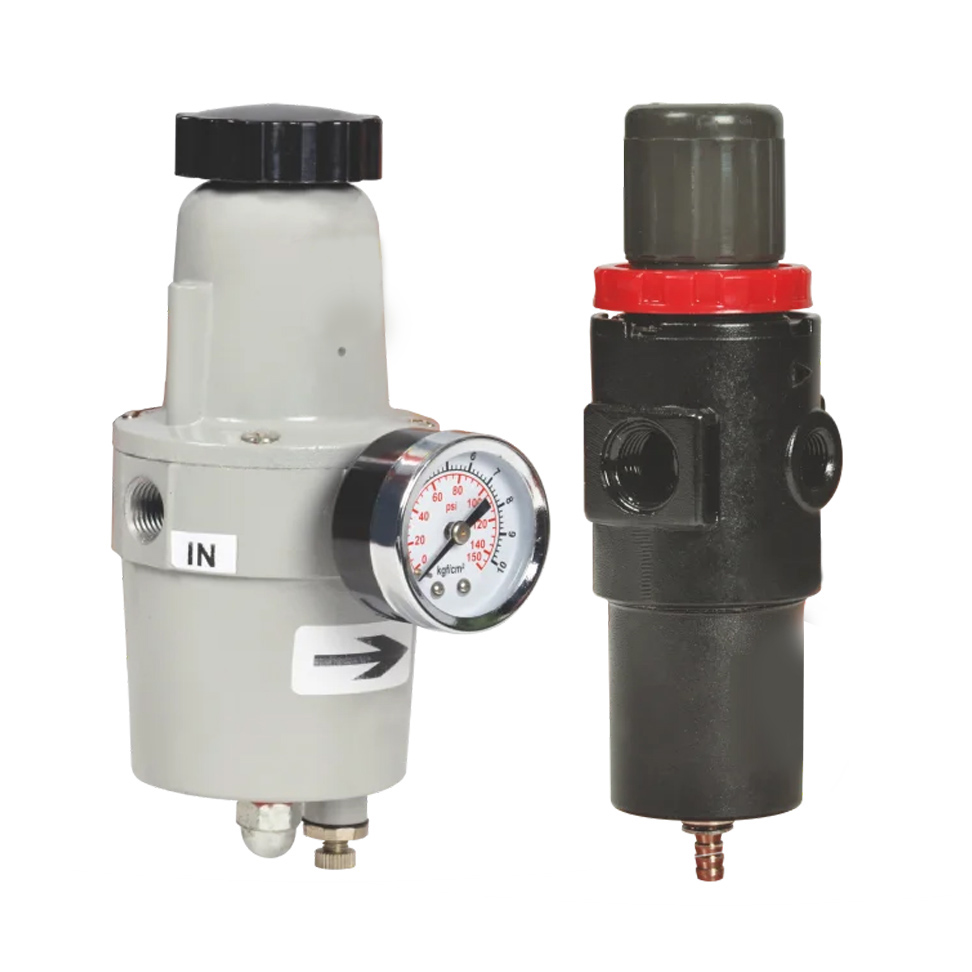

  • AIR FILTER REGULATOR

    MOC : Aluminium/CF8/CF8M
    Seals : Hi-Nitrile / Viton
    Pressure : 1 to 9 Kg/cm²
    Temperature : -20°C to 70°c

  • SINGLE & DOUBLE AIR LOCK VALVE

    мос : Aluminium
    Seals : NBR
    Pressure :7 Kg/cm
    Temperature :-20°C to 70°C

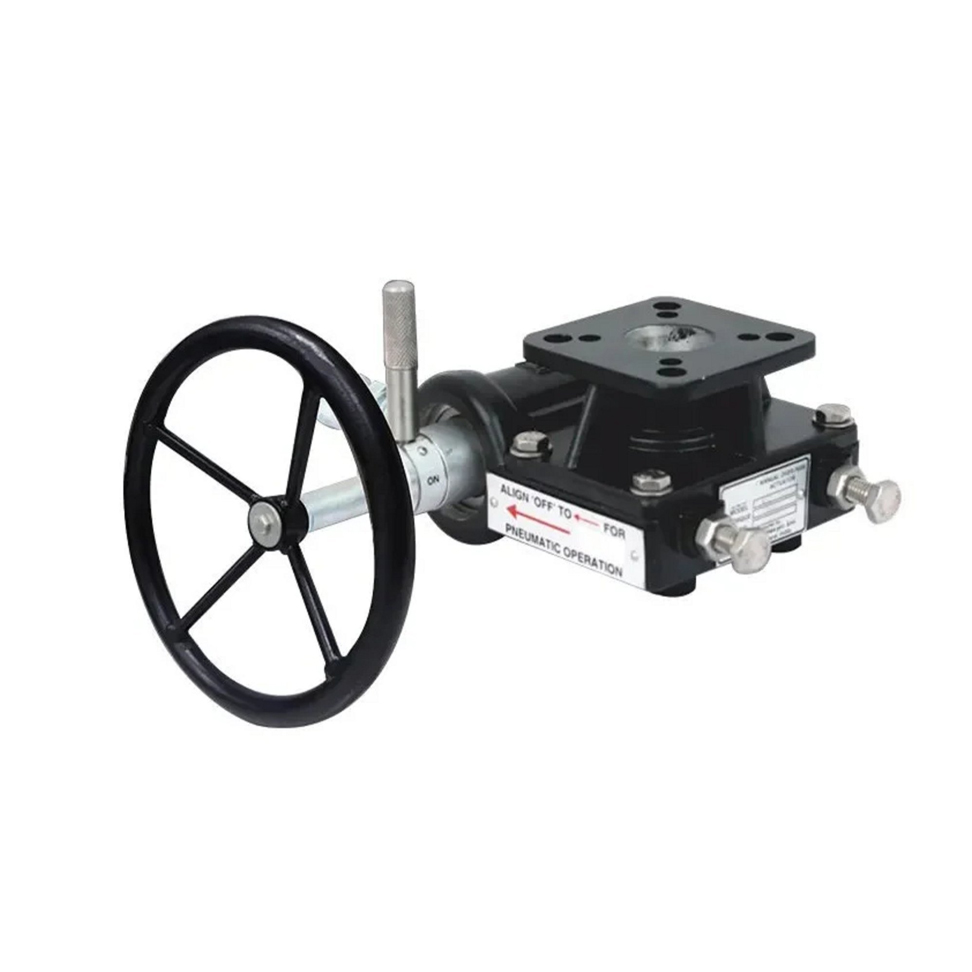

  • GEAR BOX

    Body : CI/DI/ Stainless Steel
    Shaft : EN 8
    Torque : 180 Nm to 100000 Nm
    Travel : 90° (Quarter Turn)
    Hand Wheel : M. S. Fabricated

  • WEATHERPROOF & FLAMEPROOF LIMIT SWITCH BOX

    Body : Aluminium Die Cast
    Switch :1 No+1 Nc/ 2 No +2 Nc
    Enclosure : Weather Proof/ Flame Proof
    Sensors : Micro Switch/ Proximity
    Application : For Feedback of Valve

  • PNEUMATIC (ISO) CYLINDER

    Size: 32 MM to 125MM
    Pressure : 7 to 150 psi (0.5 to 10 bar)
    Temperature : -10 °C to 60 °C
    Medium : Compressed air (filtered and lubricated)
    End Cover : End covers- nylon, aluminium (optional)
    Stroke : 0250 MM

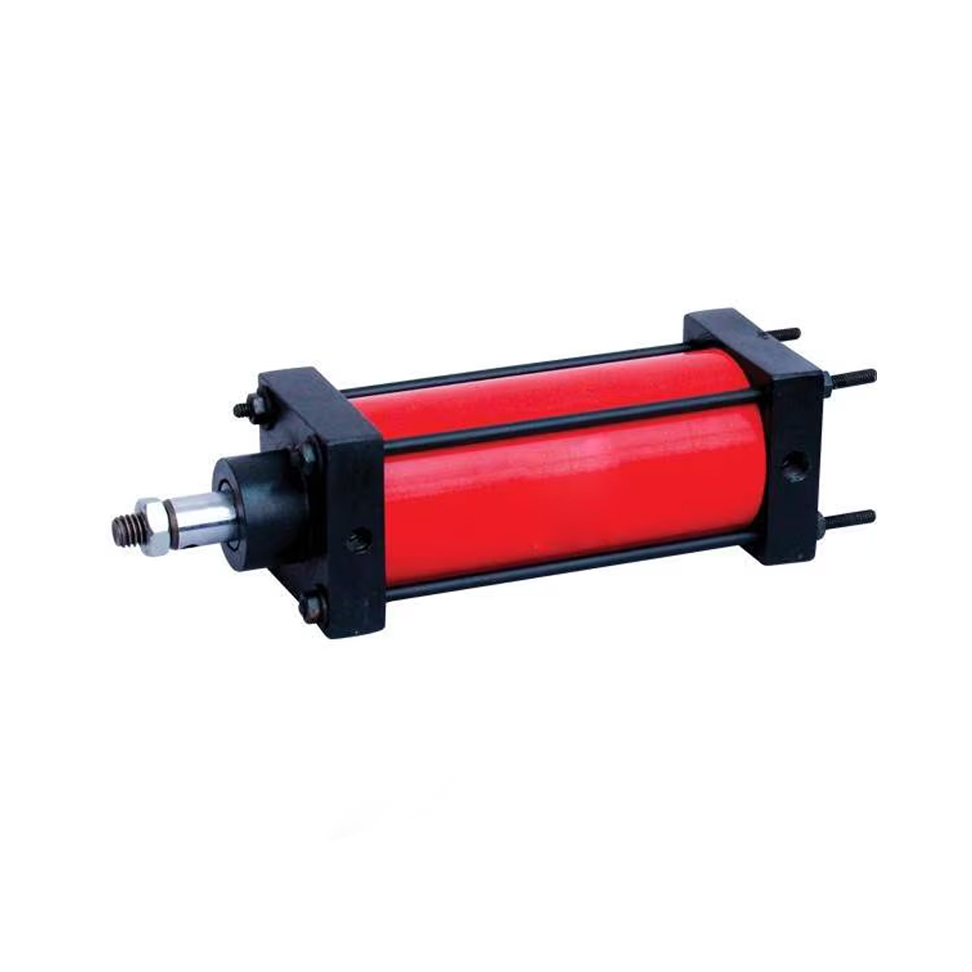

  • PNEUMATIC CYLINDERS

    Size: 25 to 350 MM
    Medium : Compressed air (filtered and lubricated)
    Design : Piston cylinder with cushion/non-cushion version
    Pressure range : 7 to 150 psi (0.5 to 10 bar)
    Temperature range : -10 °C to 60 °C, up to 150 °C with viton seals

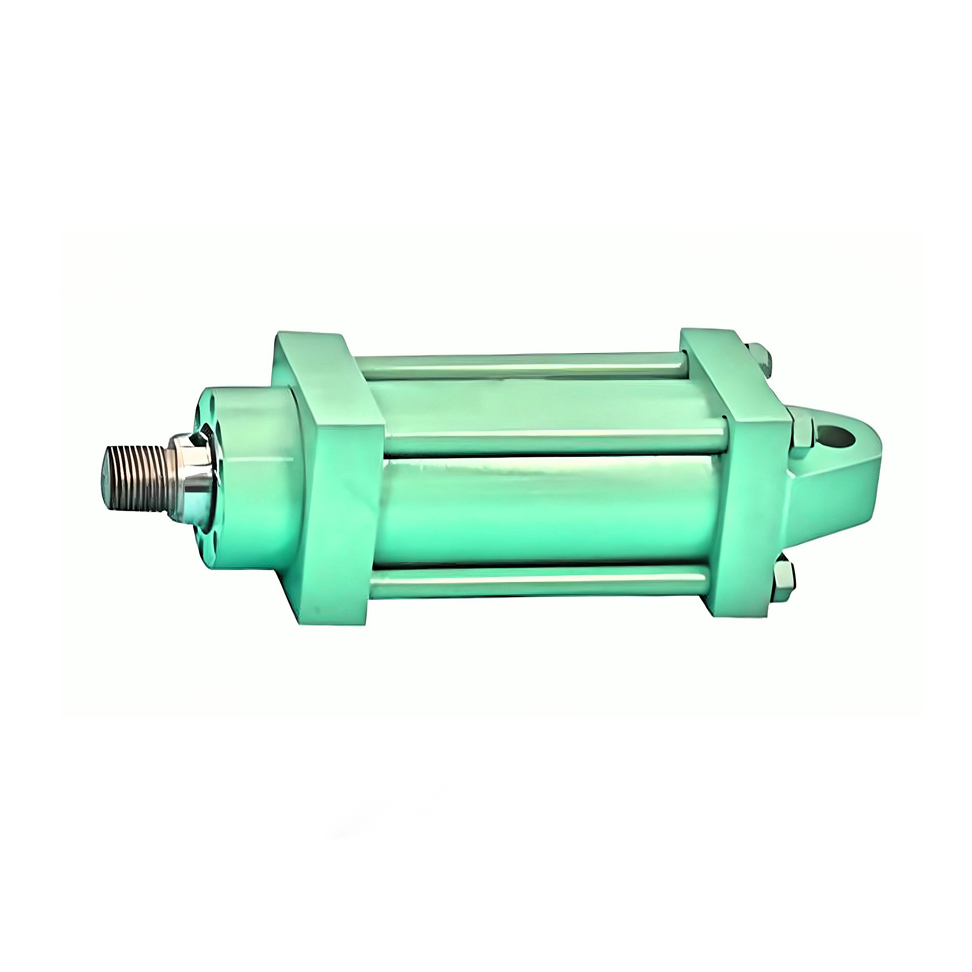

  • HYDRAULIC CYLINDERS

    Size: 40 to 300 MM
    Medium : Mineral oil (ISO VG 68)
    Design : Piston cylinder with cushion/non-cushion version
    Pressure range : Up to 3000 psi (200 bar), 345 bar on request
    Temperature range : -10 °C to 60 °C, up to 150 °C with viton seals

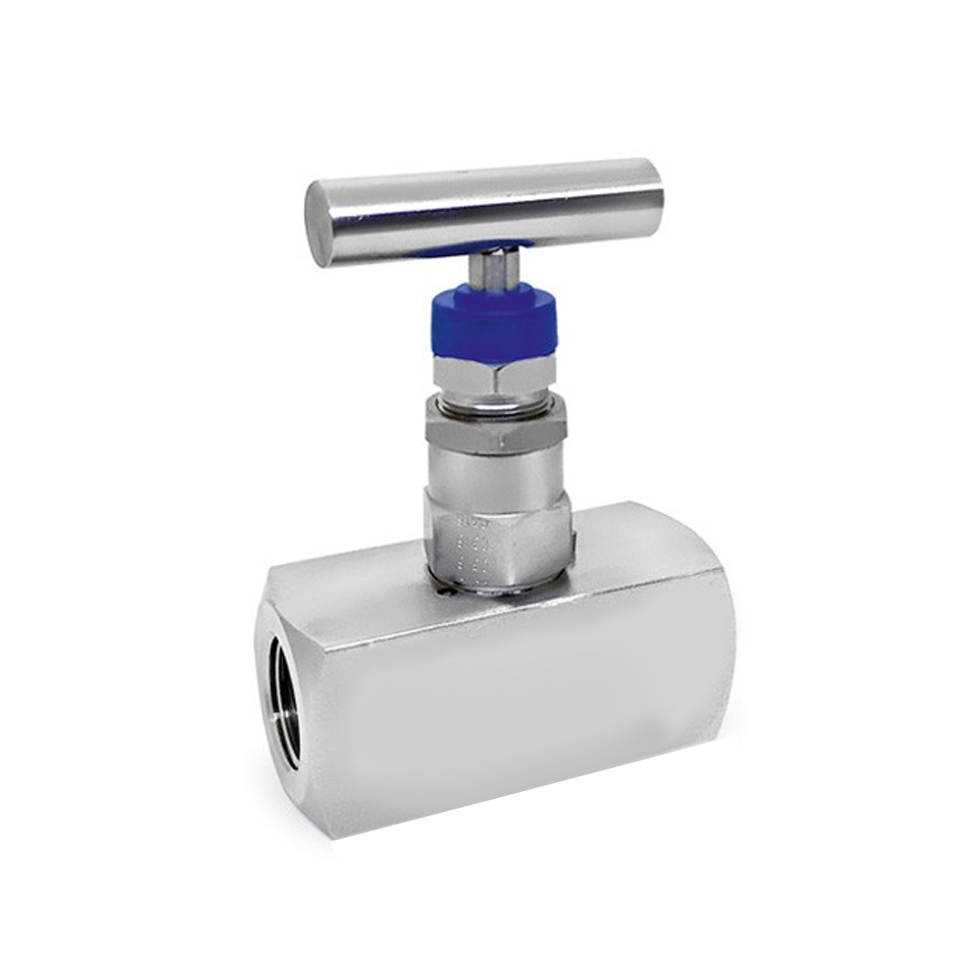

  • NEEDLE VALVE

    Size: 6 MM to 50 MM
    MOC : SS202/SS304/SS316
    END : SCREWED END BSP,NPT

  • POSITIONERS

    Types :
    1. Pneumatic Positioner
    2. Electro Pneumatic Linear Positioners
    3. Smart Positioner
