  • 2-WAY 3 PIECE BALL VALVE WITH ELECTRICAL ACTUATOR

    Actuator : Double & Single Acting
    Actuator : Quarter Turn
    Size : 15 To 300MM
    MOC : WCB/ CF8/CF8M/CF3M
    Class : 150#, 300# & 900#
    Ends : Screwed/Flanged/Triclover/Socket Weld

  • 2 WAY 3 PIECE BALL VALVE WITH PNEUMATIC ROTARY ACTUATOR

    Actuator : Double & Single Acting
    Actuator : Quarter Turn
    Size : 15 To 300MM
    MOC : WCB/ CF8/CF8M/CF3M
    Class : 150#, 300# & 900#
    Ends : Screwed/Flanged/Triclover/Socket Weld

  • HIGH PRESSURE 3000 PSI BALL VALVE

    Size : 15 To 50MM
    MOC : : CF8/ CF8M/CF3M
    Seat :PTFE/RPTFE/CFT /GFT/DEVLON
    Temperature : -50°C To 300°C
    Pressure : 3000 PSI
    Ends : Screwed /Socket Weld

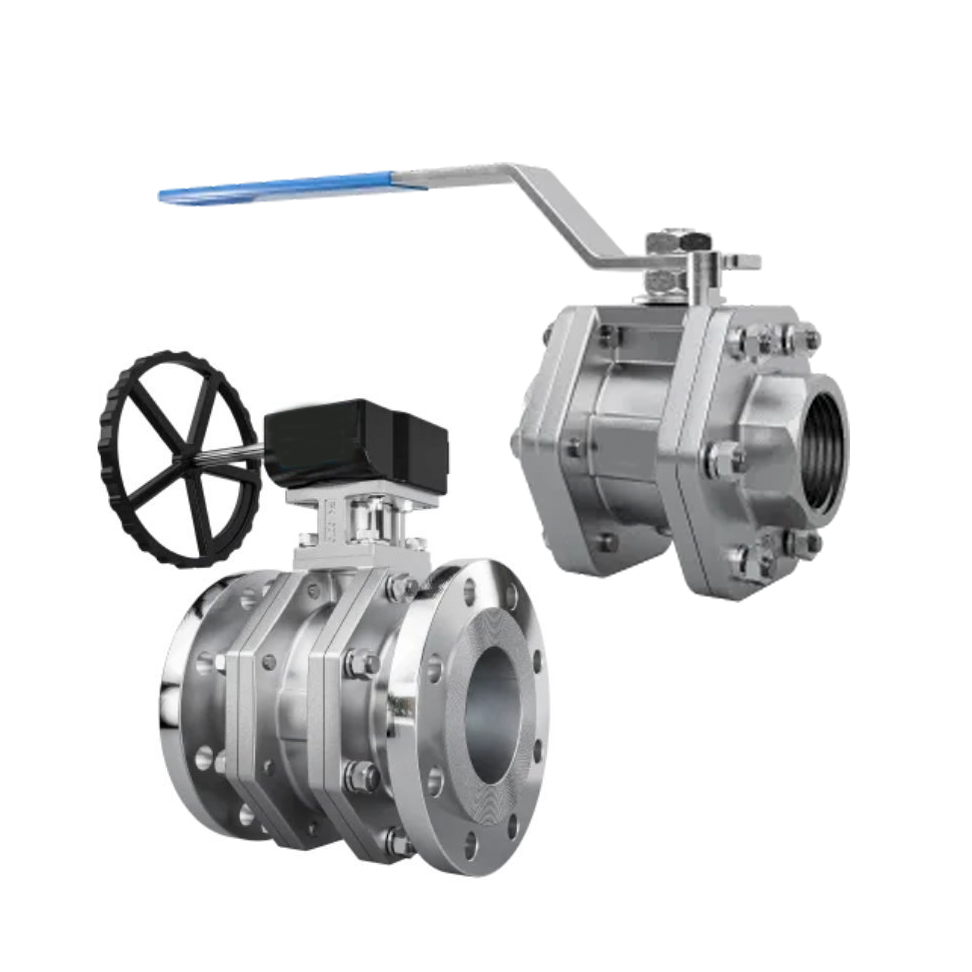

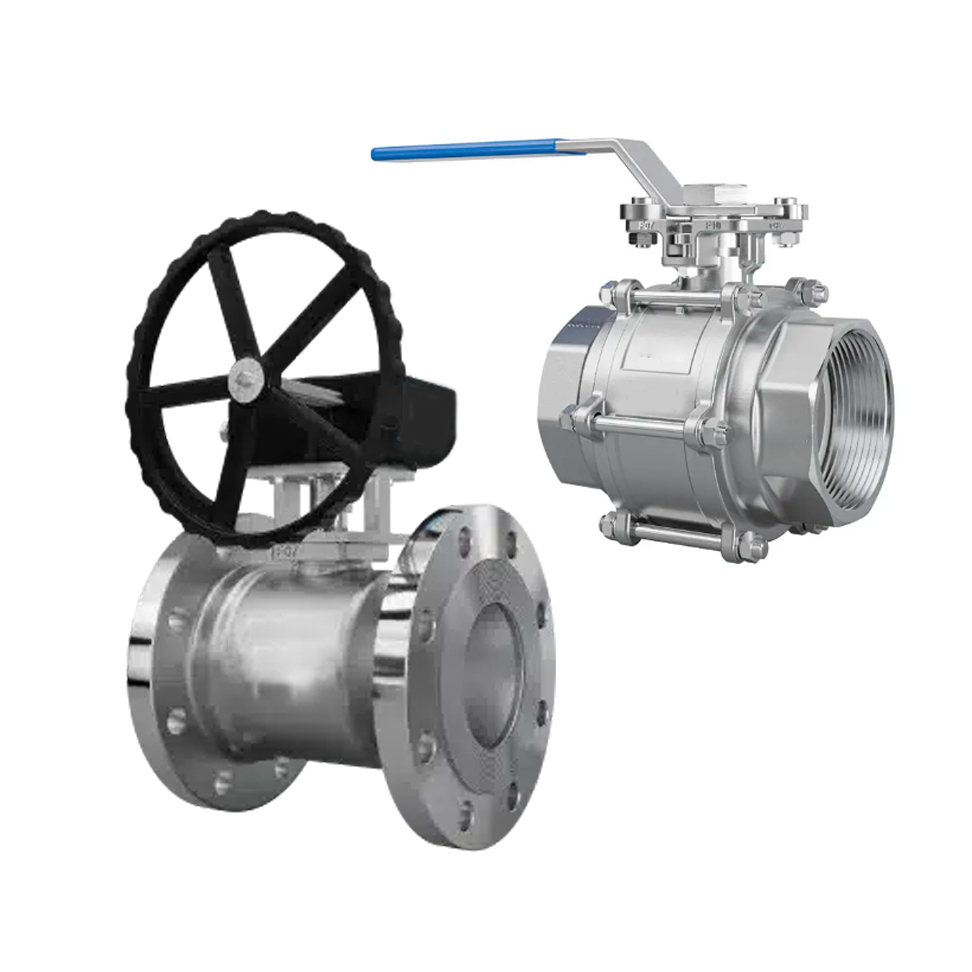

  • 2 WAY 3 PIECE DESIGN BALL VALVE

    Size : 15 To 300MM
    MOC : WCB/CF8/CF8M/CF3M
    Seals :PTFE/ GFT/ CFT/PEEK
    Pressure : Upto 22 Kg/cm²
    Temperature : Upto 180°C/230°C
    Ends : Screwed / Flanged
    Class :150# /300#/600#

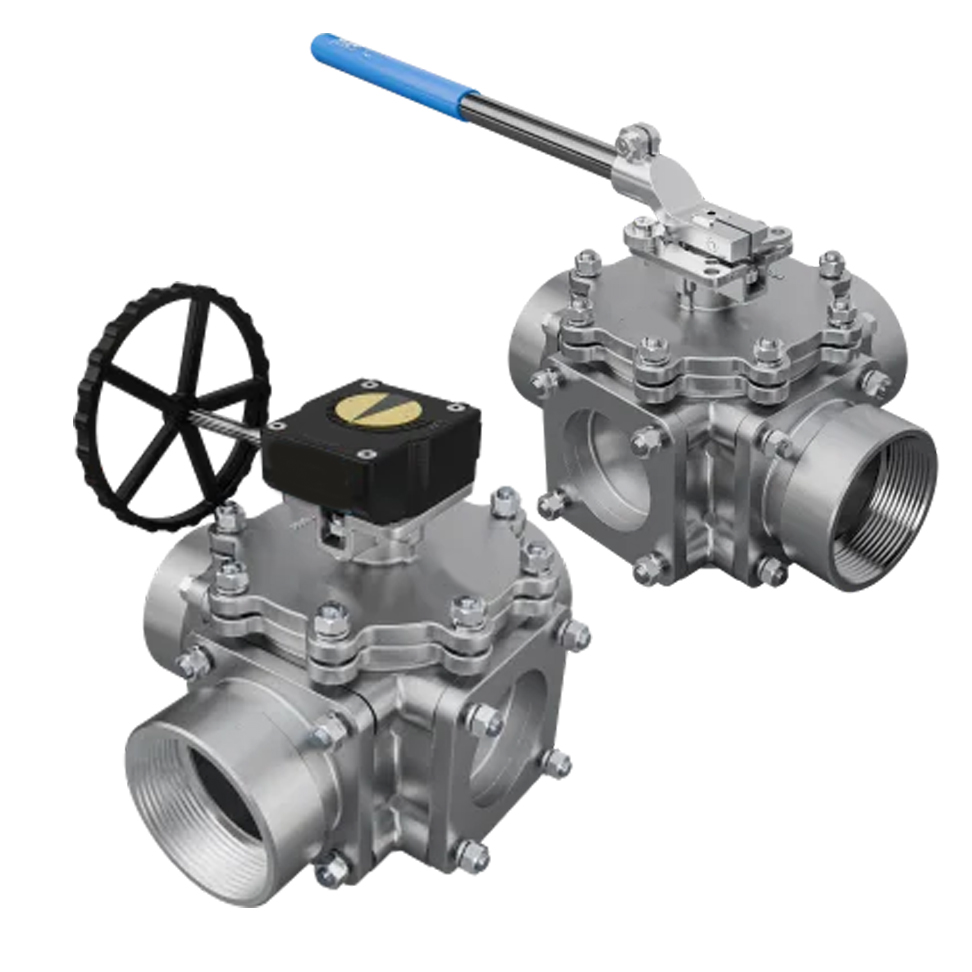

  • 3-4-5 WAY BALL VALVE

    Size : 15 To 100MM Screwed , 15 To 300MM Flanged
    MOC : WCB/ CF8/CF8M/CF3M
    Seals : PTFE/GFT/CFT/PEEK
    Pressure : Upto 22/57 Kg/cm²
    Temperature : Upto 180°C
    Ends : Screwed / Flanged , Class :150#/300#
    Port :L Port, T Port & X Port

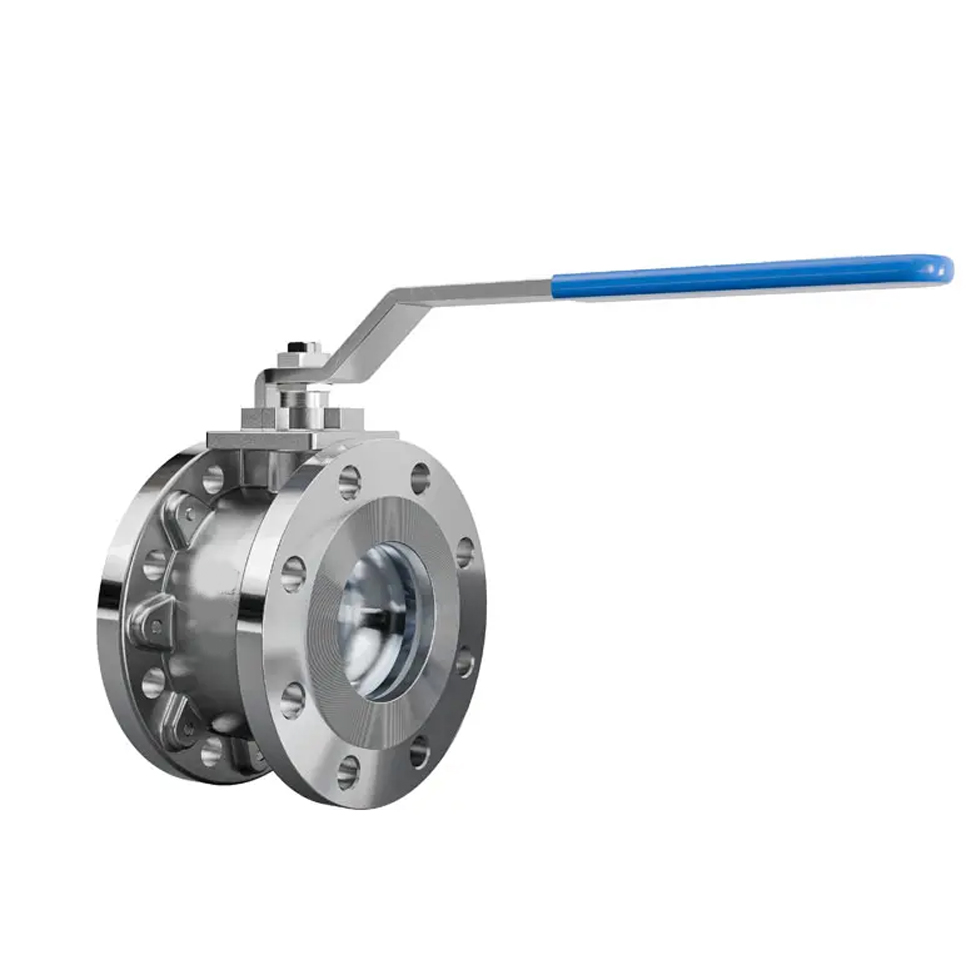

  • WAFER TYPE BALL VALVE

    Size : 25 To 100MM
    MOC : WCB /CF8/CF8M/ CF3M
    Seals :PTFE/GFT/CFT/PEEK
    Pressure : Upto 10 Kg/cm²
    Temperature : Upto 180°C
    Ends :Wafer Type 150# / 300# (Jacketed On Request)

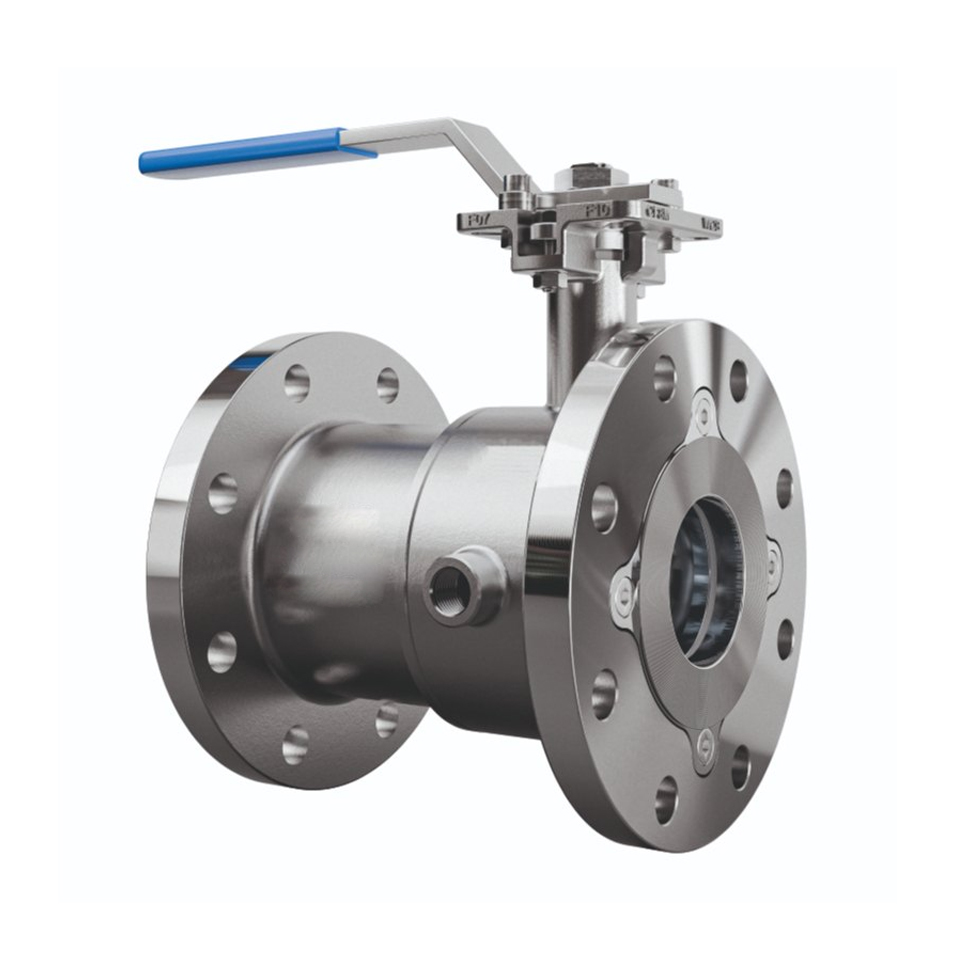

  • SINGLE PIECE BALL VALVE

    Size : 15 To 150MM Flanged
    MOC :WCB/CF8/CF8M/CF3M
    Seat :PTFE/CFT/GFT/PEEK
    Temperature : Upto 220°C
    Pressure : Upto 10Kg/cm²
    End Connection: Screwed & Flanged 150#/300#

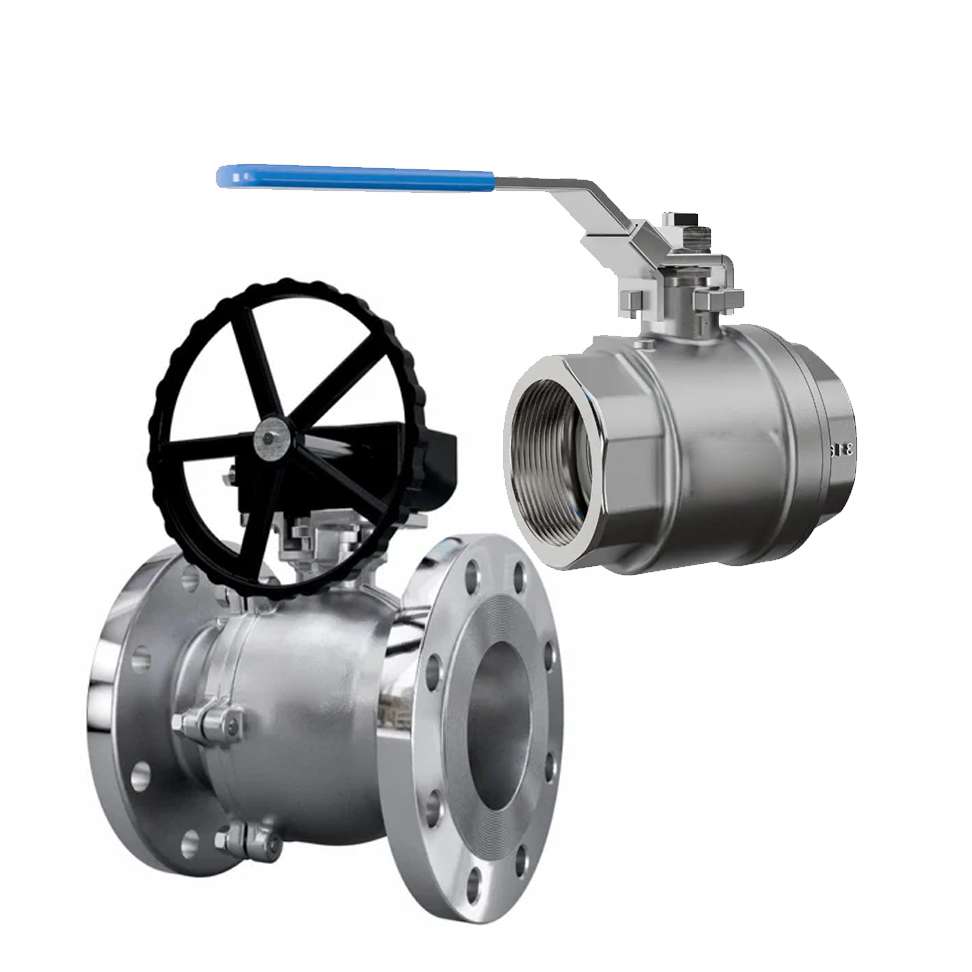

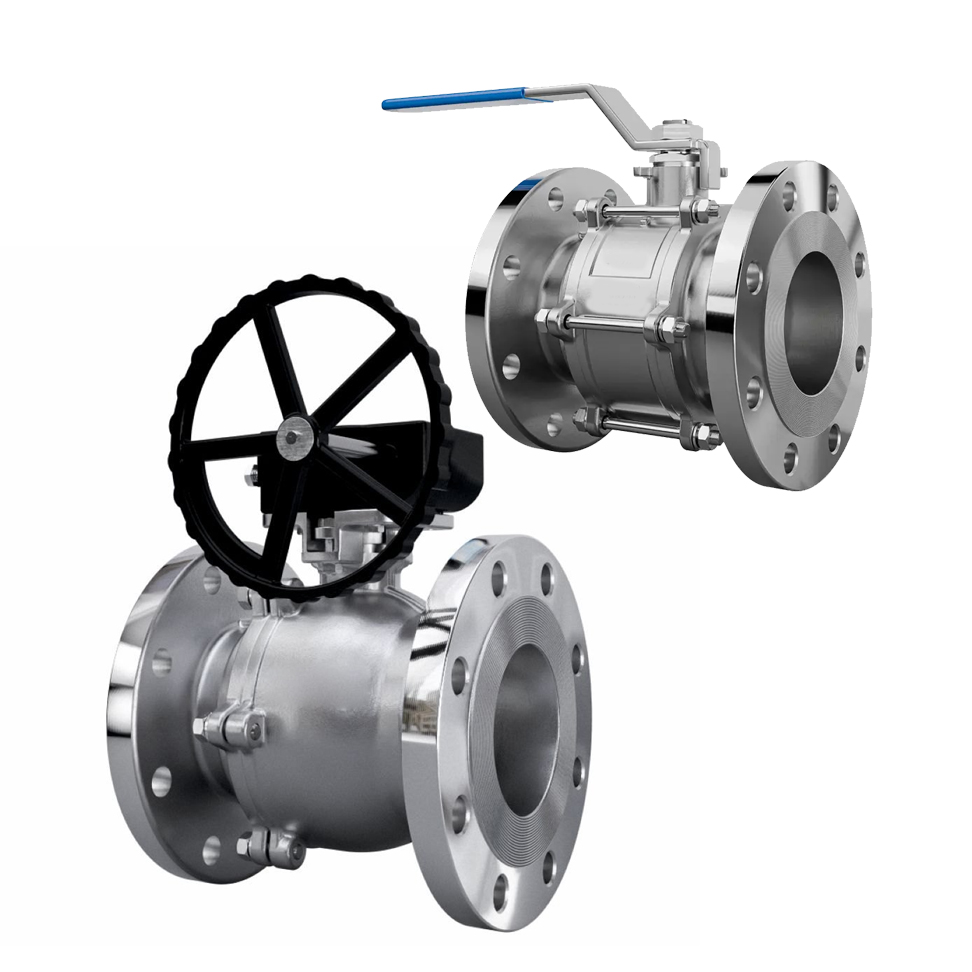

  • 2 WAY 2 PIECE DESIGN BALL VALVE

    Size : 15 To 300MM
    MOC :WCB/CF8/CF8M/CF3M
    Seat :PTFE/CFT/GFT/PEEK
    Temperature : Upto 180°C
    Pressure : Upto 22 Kg/cm²
    Ends : Flanged
    Class : 150#/300#/600#

  • 2 WAY 3 PIECE DESIGN METAL TO METAL BALL VALVE

    Size : 15 To 100MM
    MOC :CF8/CF8M/CF3M
    Seals : Metal to Metal
    Pressure : Upto 10 Kg/cm²
    Temperature:-50°C/420°C
    Ends :Screwed / Flanged

  • JACKETED SINGLE PIECE 2 WAY BALL VALVE

    Size : 20x25 To 125x150MM/250MM
    MOC :WCB / CF8/CF8M/CF3M
    Seals : PTFE/GFT/CFT/PEEK
    Pressure : Upto 22 Kg/cm²
    Temperature: Upto 180°C
    Ends : Flanged

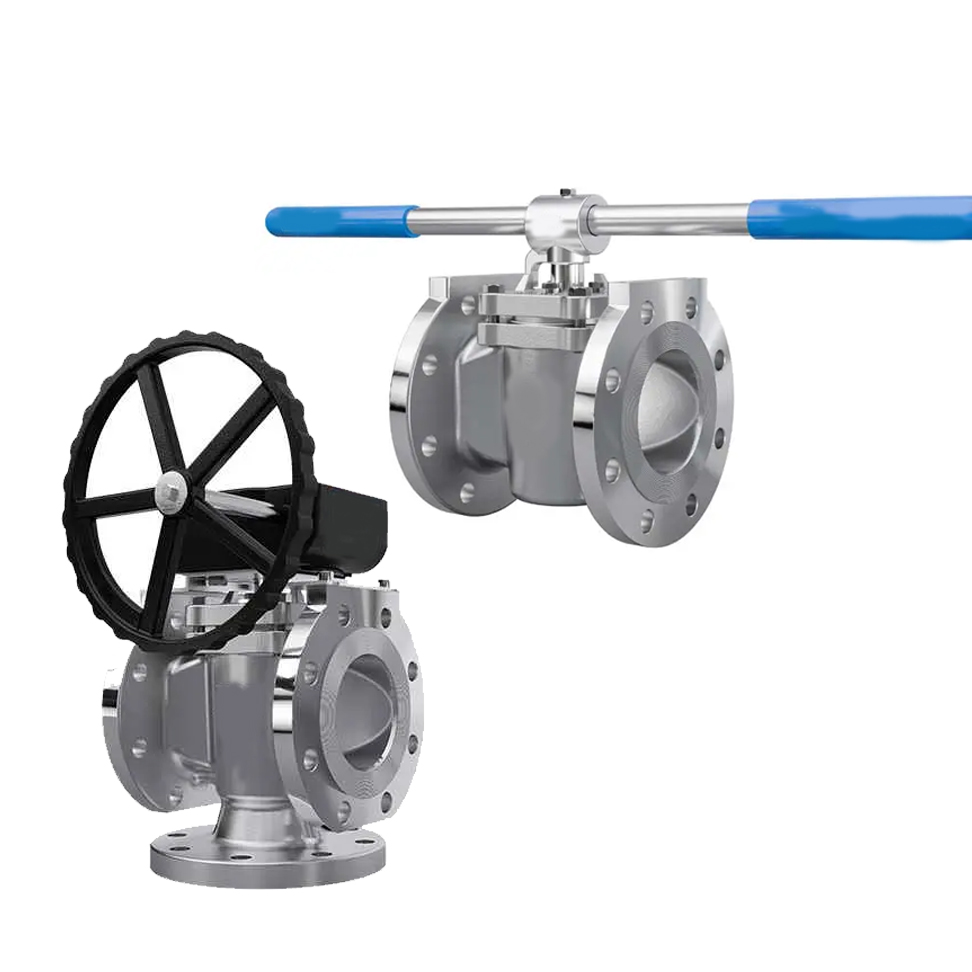

  • 2 WAY & 3 WAY PLUG VALVE

    Size : 15 To 300MM
    MOC :WCB / CF8/CF8M/CF3M
    Seals : PTFE/GFT/CFT
    Pressure : Upto 22 Kg/cm²
    Temperature: Upto 180°C /220°C
    Ends : Screwed /Flanged/Triclover/Socket
    Class : 150#/300# (Jacketed On Request)

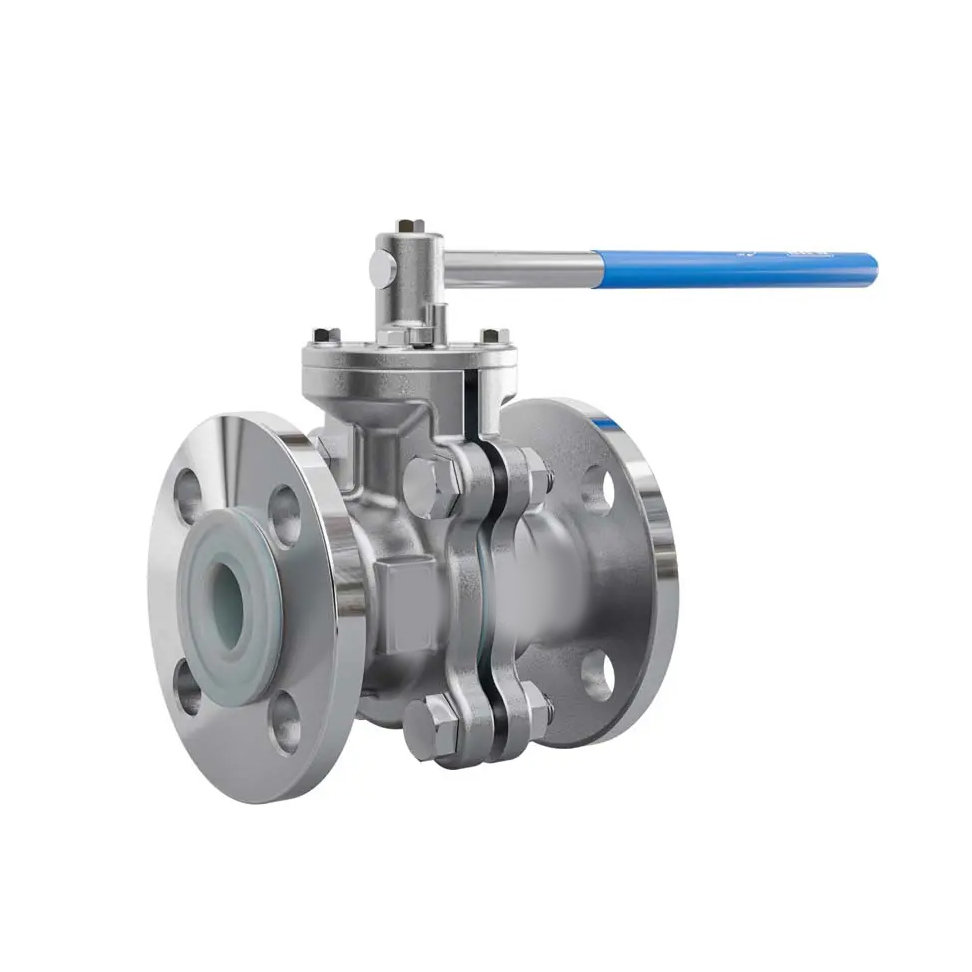

  • FEP/PFA LINED BALL VALVE

    Size : 15 To 300MM
    MOC : WCB / CF8/CF8M/CF3M
    Seals : FEP/PFA/PTFE
    Pressure : Upto 10 Kg/cm²
    Temperature: FEP: Upto 180°C/PFA: Upto 230°C
    Ends : Flanged

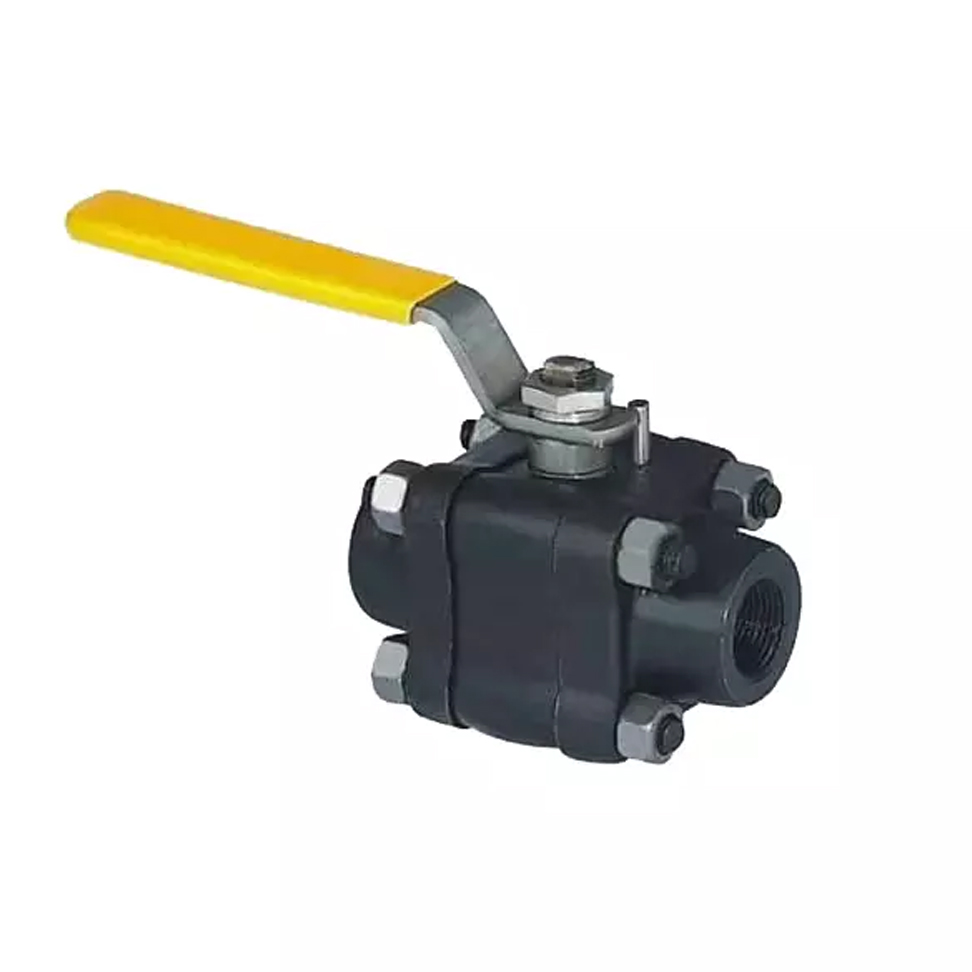

  • FORGED STEEL BALL VALVE

    Size : 15 To 50MM
    MOC : WCB / CF8/CF8M/CF3M
    Class : 800#
    Seat : 2000 PSIG
    Pressure : 800 PSIG
    Temperature: 180°C
    Socket Weld Ends : ANSI B 16.11
