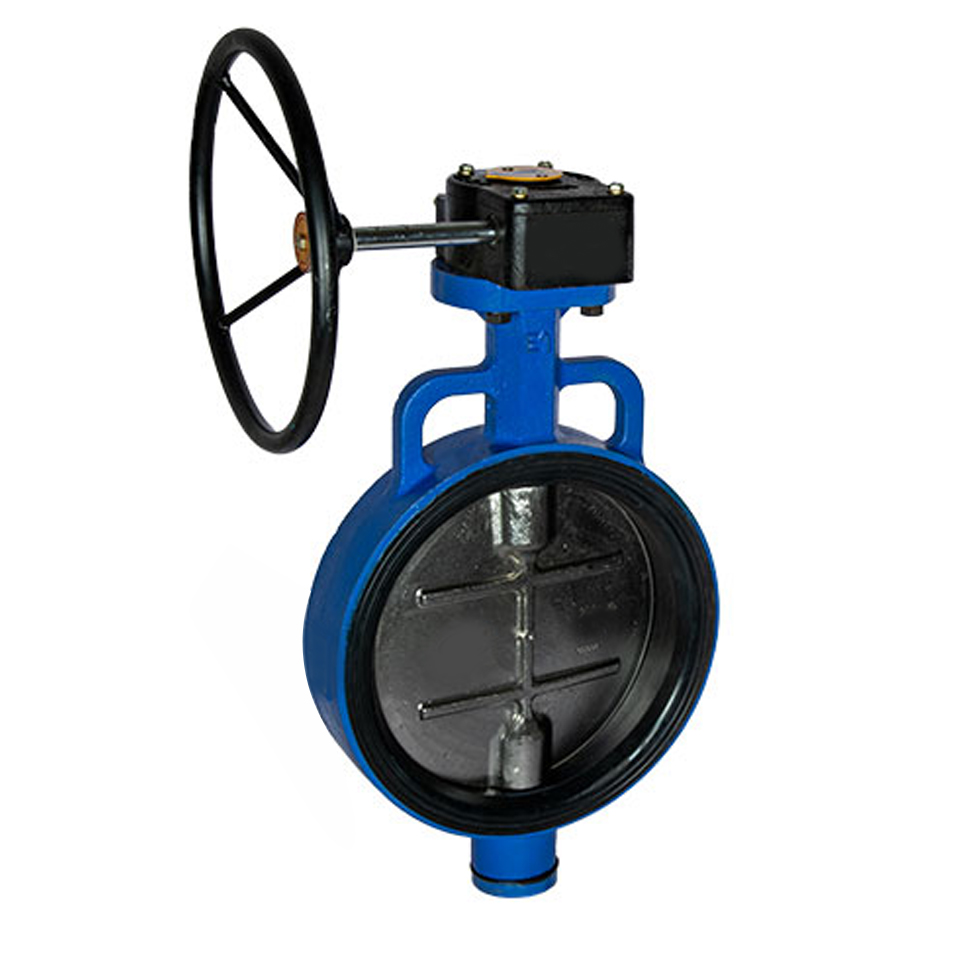

CENTRIC WAFER TYPE BUTTERFLY VALVE

Size : 40 To 1200MM
MOC : CI/ DI/WCB/CF8/CF8M
Design :Moulded /Replaceable
Seals : Nitrile/ EPDM/Viton
Pressure : PN 10/16
Temperature : -25°C to 220°C (Depending on MOC)
Ends : Wafer Typе

CENTRIC LUG TYPE BUTTERFLY VALVE

Size : 40 To 1200MM
MOC : CI/DI/WCB/CF8/CF8M
Design : Moulded / Replaceable
Seals : Nitrile / EPDM/Viton
Pressure : PN 10/16
Temperature :-20°C to 220°C (Depending on MOC)
Ends : Lug Type

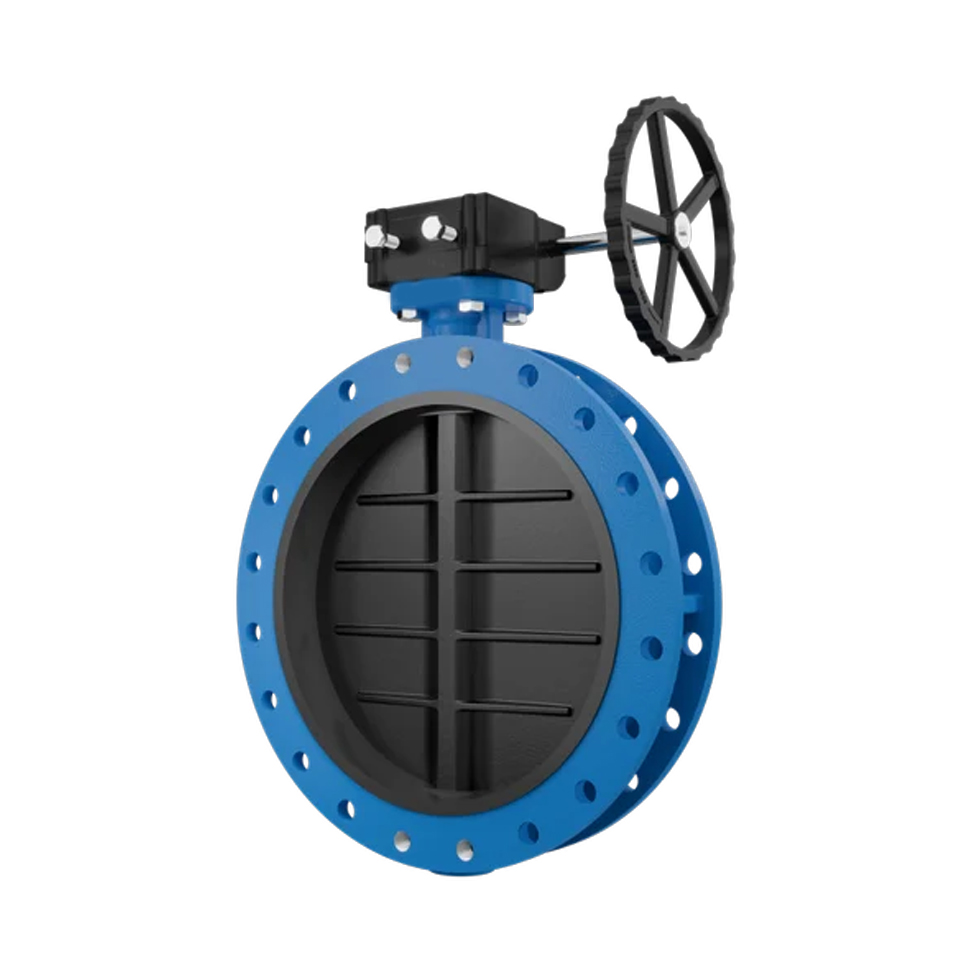

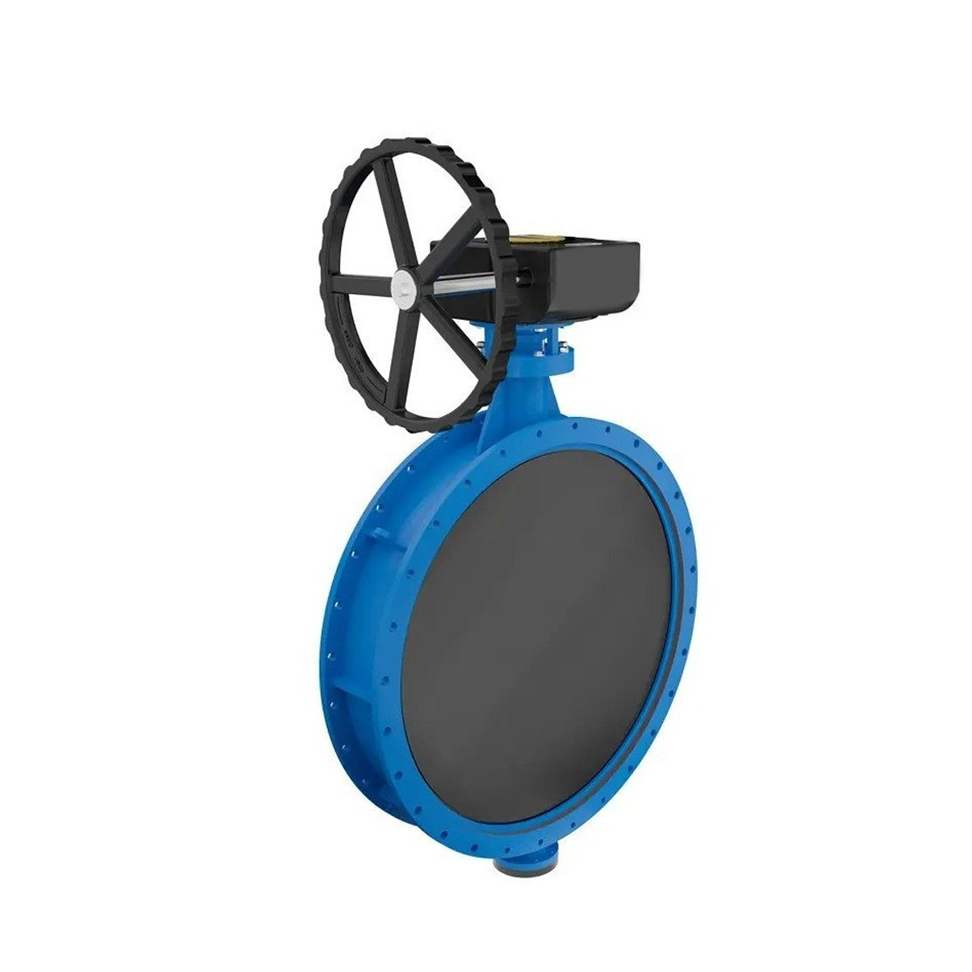

CENTRIC DOUBLE FLANGE TYPE BUTTERFLY VALVE

Size : 40 To 1200MM
MOC : CI/DI/WCB/CF8/CF8M
Design : Moulded / Replaceable
Seals : Nitrile / EPDM/Viton
Pressure : PN 10/16
Temperature :-25°C to 220°C
Ends : Double Flange

SPHERICAL DISC BUTTERFLY VALVE

Size :40 To 900MM
MOC : CI/ DI/WCB/CF8/CF8M
Temperature:-25°C To 250°C
Pressure : PN 10/20
Class : 150# /300#
Ends :Wafer, Lug, D. Flange

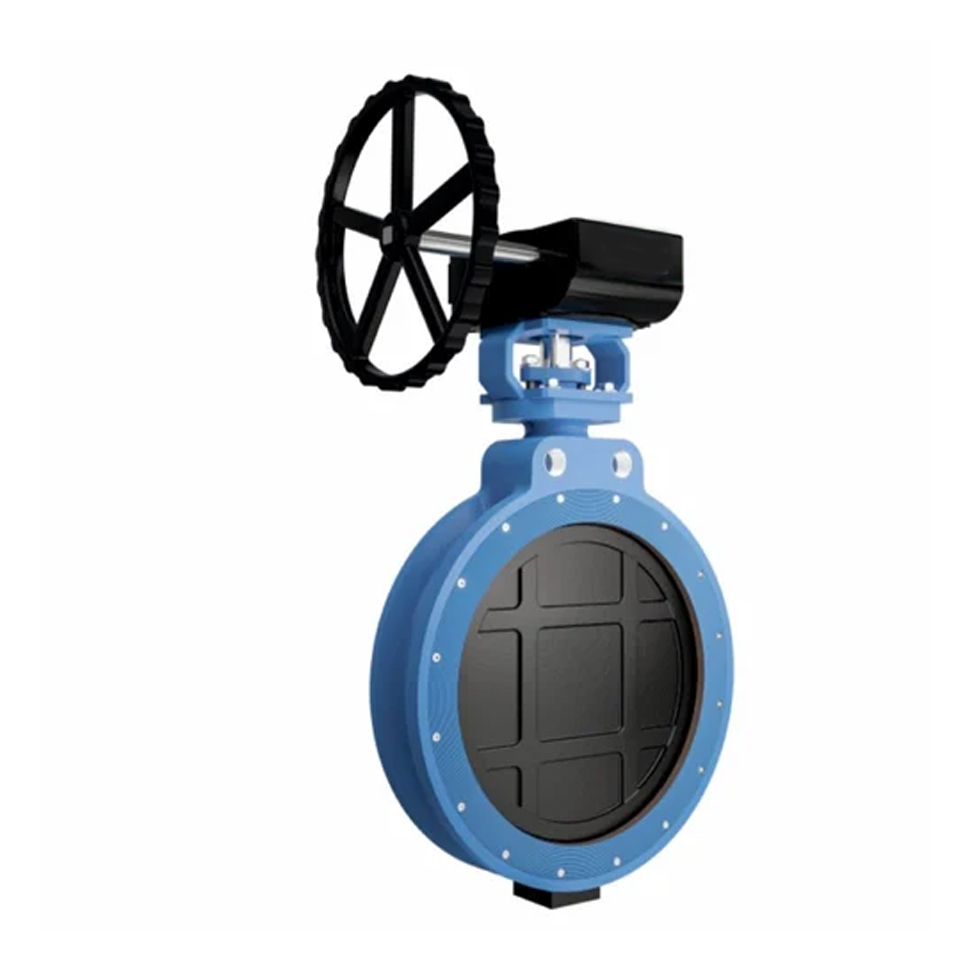

DOUBLE ECCENTRIC OFFSET DISC BUTTERFLY VALVE

Size : 65 To 1800MM
MOC :WCB/CF8/CF8M/CF3M
Seals :PTFE / EPDM/ Viton
Pressure : Upto 10 Kg/cm²
Temperature: -20°C to 120°C
Ends : Wafer, Lug, D. Flange
Class : 150#/300# /900#

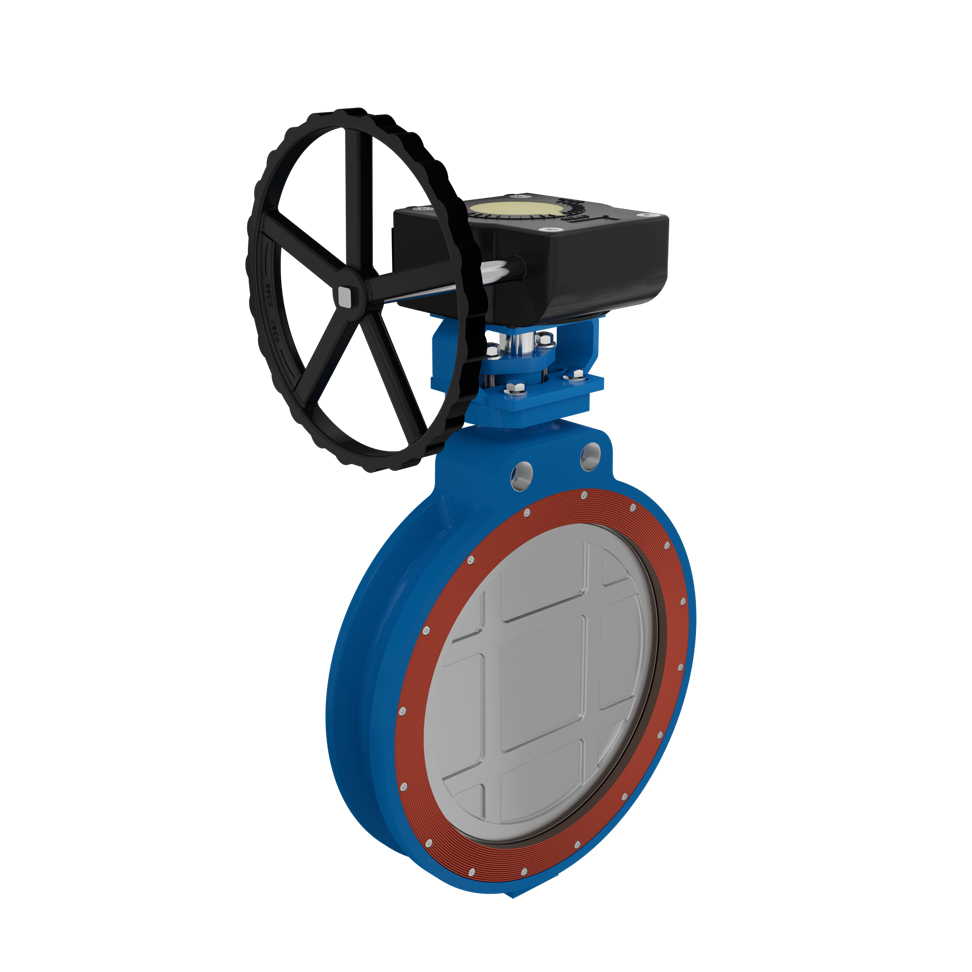

TRIPLE ECCENTRIC OFFSET DISC BUTTERFLY VALVE

Size : 65 To 1800MM
MOC :WCB/CF8/CF8M/CF3M
Seals :M to M With Graphite
Pressure : Upto 10/57 Kg/cm²
Temperature: -20°C to 450°C
Ends : Wafer, Lug, D. Flange
Class : 150#/300# /600#

DAMPER VALVE

Size : 40 To 3500MM
MOC : M.S/SS 304/S.S 316
Disc Material: M.S/SS 304/ S.S 316
Temperature: Upto 600°C
Pressure : PN 6
Shut Off : Leakage Class 4
Ends : Wafer & Double Flange

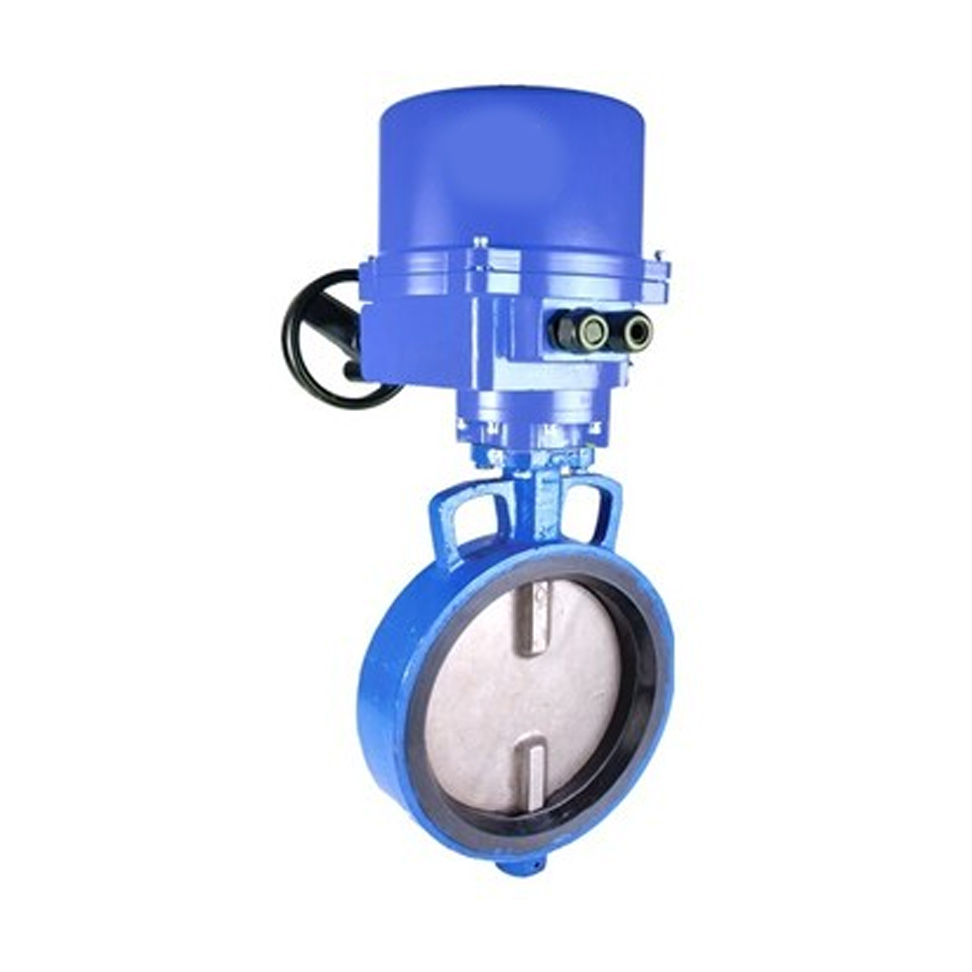

BUTTERFLY VALVE WITH ELECTRICAL ACTUATOR

Actuator : Quarter Turn
Size :40 To 1200MM
MOC : CI / SG IRON/CF8/CFBM
Seals : Nitrile / EPDM
Pressure :PN 10/16
Temperature : -25°C to 180°C
Ends : Wafer, Lug & Double Flange

BUTTERFLY VALVE WITH PNEUMATIC ROTARY ACTUATOR

Actuator : Double & Single Acting
Size :40 To 1200MM
MOC : CI / SG IRON/CF8/CFBM
Seals : Nitrile / EPDM
Pressure :PN 10/16
Temperature : -25°C to 180°C
Ends : Wafer, Lug & Double Flange

PTFE MUFFLER BUTTERFLY VALVE

Actuator : Double & Single Acting
Size :50 To 600MM
MOC : SG IRON/WCB/CF8/CF8M
Seat : PTFE/RPTFE/ CFT/GFT
Pressure : Upto 8 Kg/Cm²
Temperature : -50°C To 300°C , Class : 150#
Ends : Wafer Type, Lug Type & Double Flange

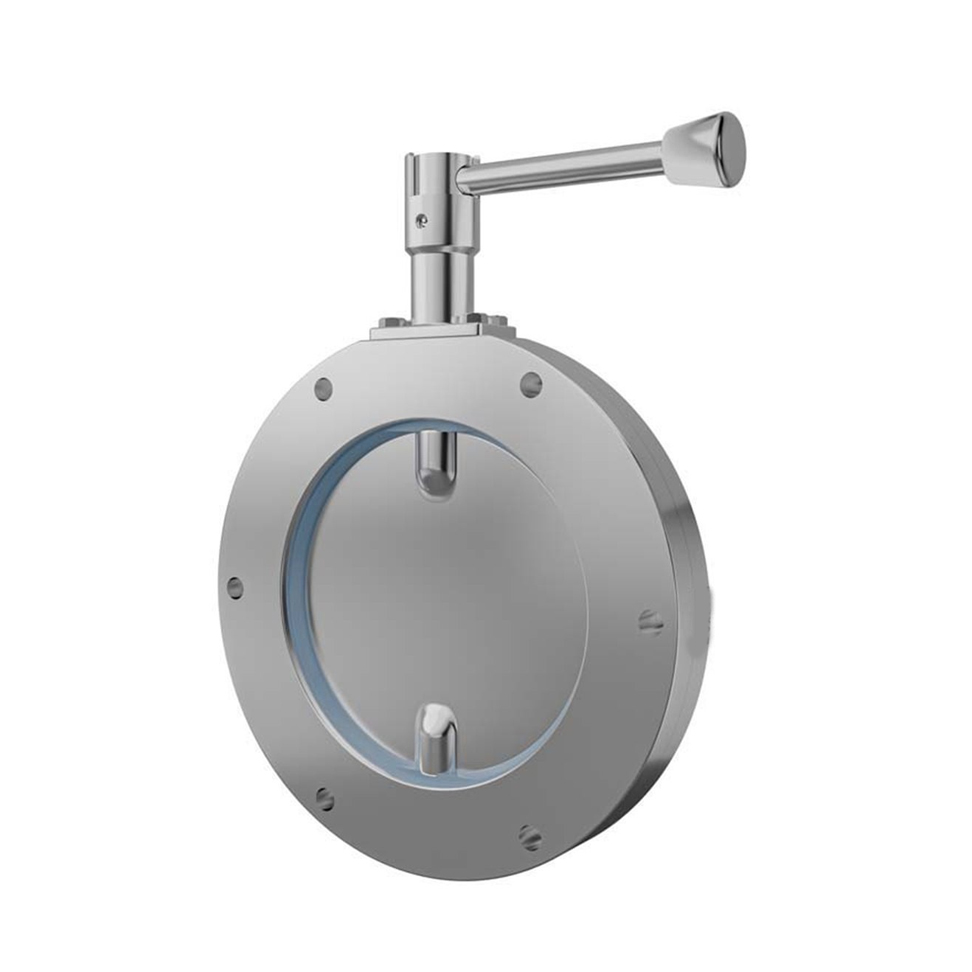

PHARMACEUTICAL BUTTERFLY VALVE

Size : 25 To 500MM
Pressure : Max. 3 To 4 Kg/cm³
Temperature : Upto 180°C
Seals : SILICON (Food Grade) White EPDM
Leakage : Class V To VI
Media : Air/Water/Oil/Gas/ Powder/Vacuum

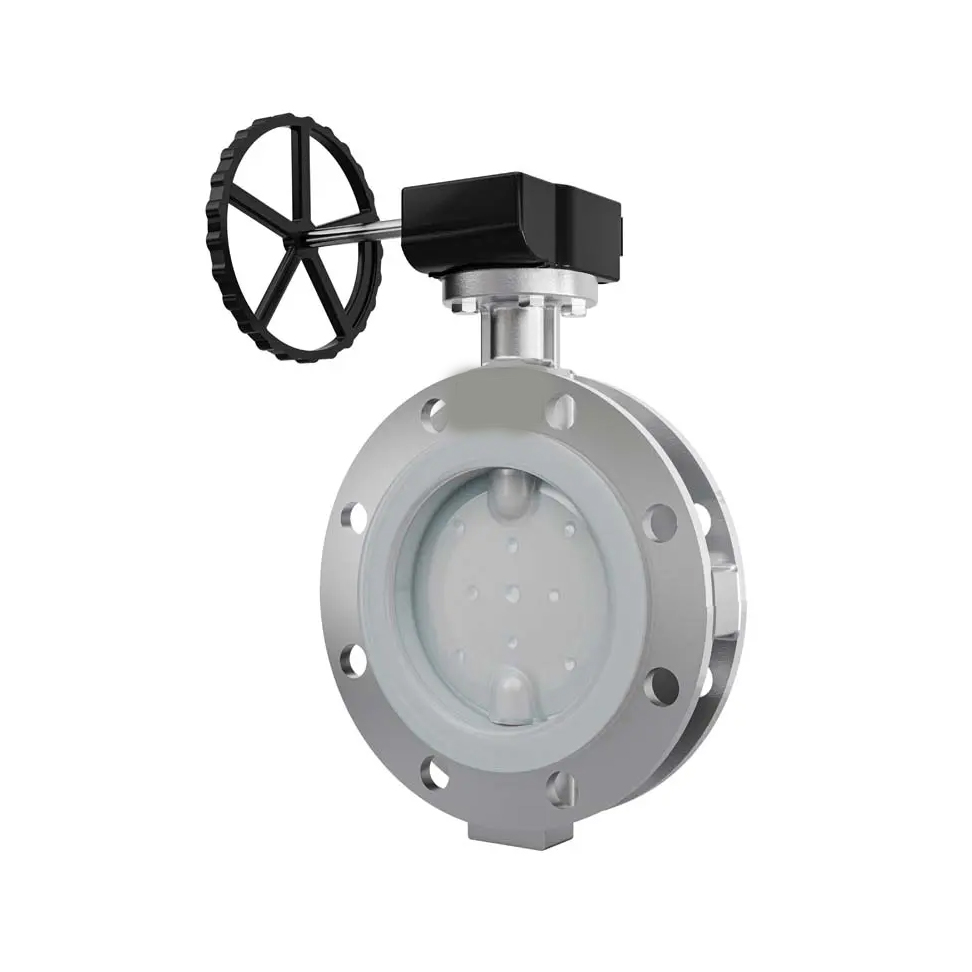

FEP/PFA LINED BUTTERFLY VALVE

Size : 40 To 600MM
MOC :WCB/CF8/CF8M/CF3M
Seat :FEP /PFA/PTFE
Pressure : Upto 10 Kg/cm²
Temperature : FEP: Upto 180°C/PFA: Upto 230°C
Ends : Flanged
