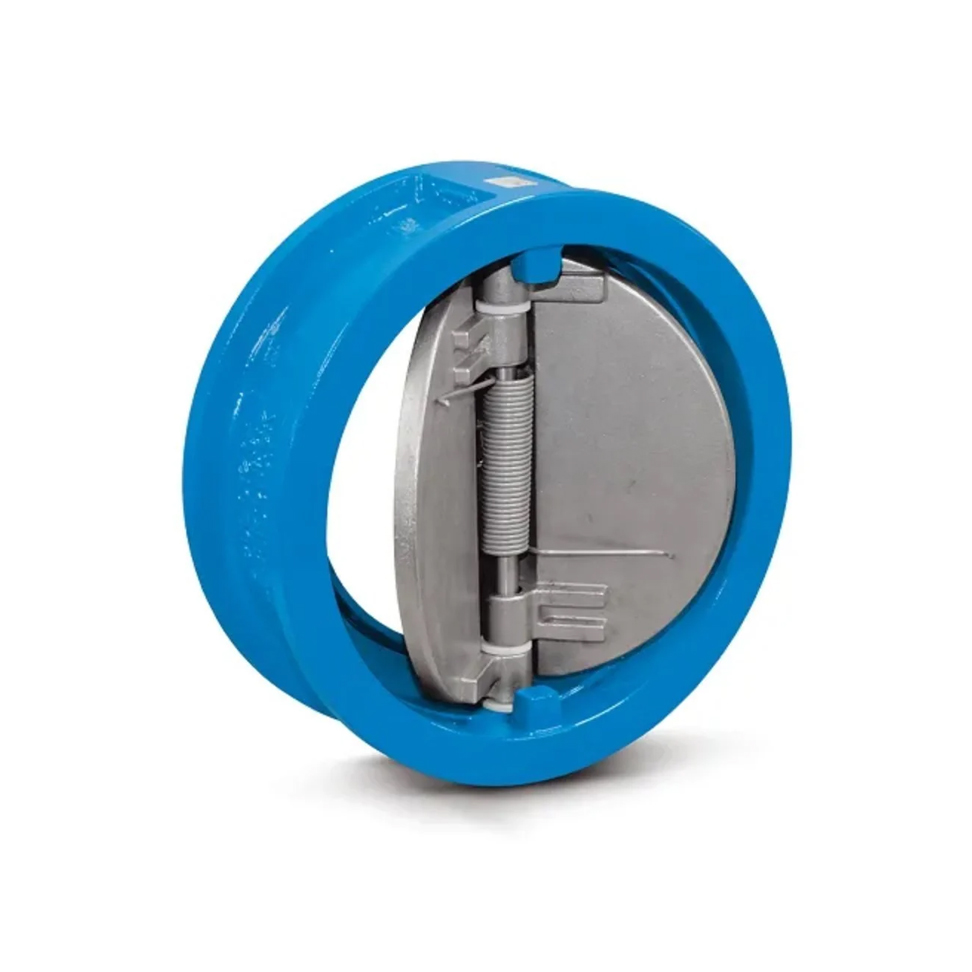

  • DUAL PLATE CHECK VALVE

    Size : 50 To 1200MM
    MOC : WCB/ CI/DI/CF8/CF8M
    Seals : EPDM/NBR/VITON
    Pressure: PN 10/16
    Temperature : -20°C to 180°C (Depending on MOC)
    Ends : Flanged & Wafer Type (Fully Moulding On Req.) (Metal Seated On Req.)

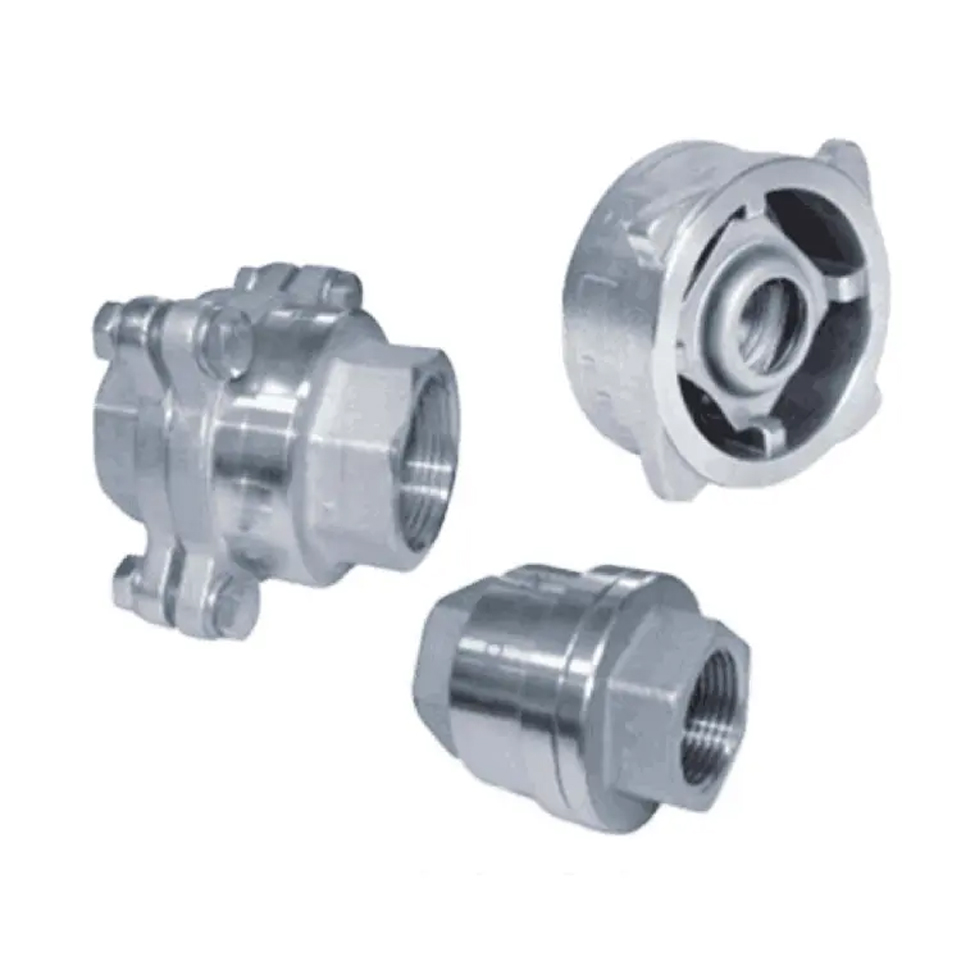

  • NON-SLAM CHECK VALVE

    Size : 15 To 100MM Screwed, 15 To 300MM Wafer, 32 To 50MM Lug
    MOC : CF8/CF8M
    Seals : Metal to Metal (PTFE/EPDM On Req.)
    Pressure : PN 20/PN 40
    Temperature : Max. 300°C

  • DISC TYPE CHECK VALVE

    Size : 15 To 250MM
    MOC : CF8/CF8M
    Seals : Metal to Metal
    Pressure : PN 40
    Temperature : Max. 300°C

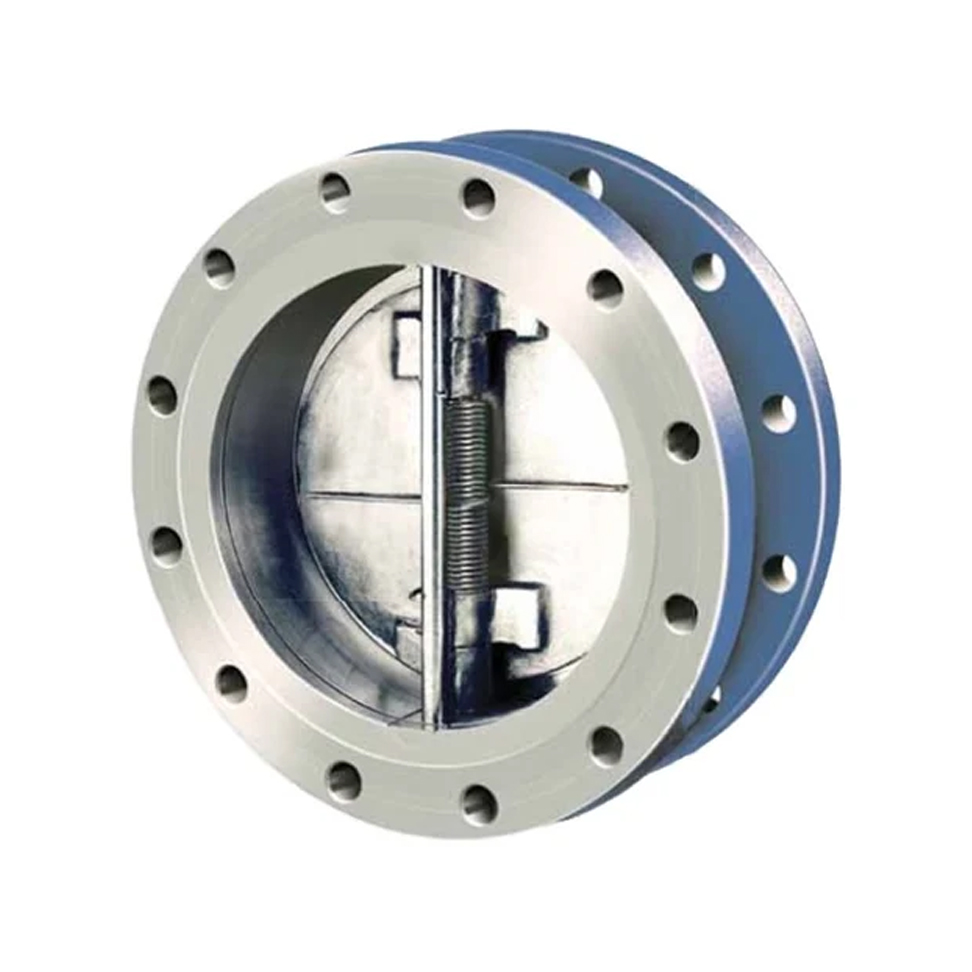

  • DUAL PLATE TYPE CHECK VALVE

    Size : 50 To 600MM
    MOC : CF8/CF8M
    Seat : NBR/EPDM/VITON
    Body :21 PSIG
    Class : 150#

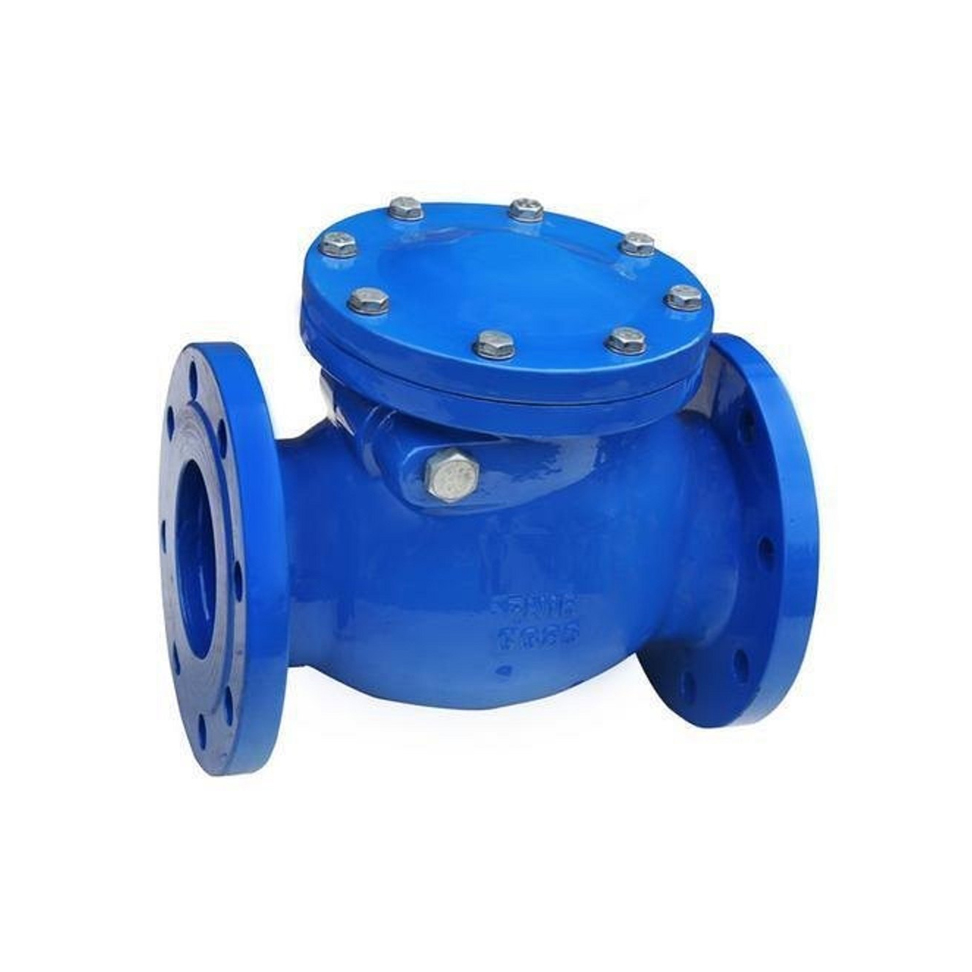

  • SWING TYPE CHECK VALVE

    Size : 40 To 400MM
    MOC : WCB
    Seals : Carbon Steel
    Pressure : PSIG 150, 300
    Temperature : 500°F, 800°F
    Clas: 150#, 300#
